Kev piav qhia

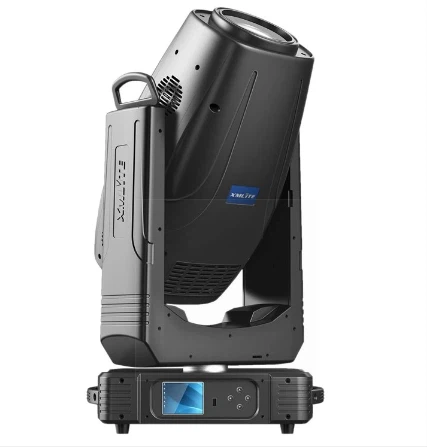

Hauv peb caug xyoo dhau los, tej zaum tsis muaj kev tsim kho tshiab uas muaj kev cuam tshuam ntau dua rau kev lag luam teeb pom kev zoo dua li qhov pom ntawm 1400W Moving Head Profile. Pom muaj nyob rau hauv ntau lub tsev ua yeeb yam, lub luminaire tso cai rau cov neeg tsim qauv los muab ntau yam cwj pwm, nrog rau kev coj, xim, duab thiab siv. Raws li cov peev nyiaj tsim khoom thiab cov kev nyiam ntawm cov neeg tsim qauv, kev xaiv cov khoom siv rau kev ua lub teeb yog yuav luag tsis txwv.
Txawm hais tias nqa lub teeb zoo li no rau hauv tus qauv tsim tau qhib lub ntiaj teb ntawm kev tsim muaj peev xwm, nws kuj tau ua ntau qhov nyuaj ntawm kev tsim, yog li tag nrho lwm yam kev txwv thiab kev siv nyiaj yuav tsum tau ua tib zoo xav txog thaum suav nrog lub teeb txawb hauv cov txheej txheem tsim.
Cov khoom no muaj ntau yam khoom uas tuaj yeem tswj tau los ntawm lub teeb pom kev zoo, nrog rau cov xim, cov duab (ntug thiab qauv daim), kev taw qhia, kev siv zog thiab kev txav. Nws muaj ntau lub peev xwm zoo heev, suav nrog kev muaj peev xwm txav tau lub teeb ci ntawm theem, thiab ua haujlwm xws li tig cov qauv, dov lub log xim thiab lwm yam teebmeem discotheque.
Los ntawm kev sib xyaw ua ke no, cov neeg tsim qauv muaj yuav luag tsis muaj kev txwv hauv kev xaiv xim, thiab tuaj yeem siv cov teeb no coj los ua kom muaj kev sib txawv ntawm qhov chaw thiab qhov chaw teeb pom kev zoo, ua rau lawv haum rau qhov chaw loj lossis me me.
Nta
1. Kev tswj hom: Qhov no 1400W Moving Head Profile muab ntau hom kev tswj, suav nrog DMX, tus tswv- qhev, tsis siv neeg thiab lub suab nrov. Nws txoj kev sib txuas muaj xws li lub zog tawm tswv yim thiab cov zis thiab 3-pin DMX cov ntaub ntawv tawm tswv yim thiab cov zis, uas yog qhov tsim nyog rau qhov chaw teeb tsa, kev ua ub no thiab cov khoom siv mobile.
2. RGB xim sib txuam: Raws li cov kws tshaj lij co-lub taub hau dyeing teeb, nws muaj ntau cov khoom zoo LED hlaws, uas tuaj yeem paub qhov hloov pauv hloov pauv ntawm ntau yam xim, thiab tuaj yeem siv dav dav lossis nqaim nqaj nrog ntau yam. .
3. Kev txhais lus thiab qaij txav: Lub teeb muaj kev txhais lus nrawm thiab raug thiab qaij txav thiab zoo txhais lus / qaij, uas tuaj yeem paub qhov ua tau zoo thiab kho qhov yuam kev thaum siv.
4. Digital zaub screen: Nws muaj qhov sib txawv strobe ceev thiab cov duab digital, uas ua rau nws yooj yim heev rau kev teeb tsa cov ntawv qhia zaub mov ntawm cov teeb thiab teeb. Nws yog dav siv nyob rau hauv cov koom haum, DJ kev ua si, band ua yeeb yam, pawg ntseeg thiab tsev neeg sib sau ua ke.
Parameter
|
Channels hom |
37/41CH; |
|
Teeb |
OSRAM lok-it 1400-PS_Brilliant CRI＞90; |
|
Lub neej |
750 hnub; |
|
Lub teeb Source Luminous Flux |
120000 (min 110000); |
|
Tus tuav |
PGXJ 28 |
|
Hwj chim |
AC 200-240V, 50/60Hz; |
|
10m illuminance (min / max) |
27400 Lux / 1.26m, 970 Lux / 10.5m; |
|
Tag nrho lub zog |
1800W; |
|
Optical system |
Reflector; |
|
Tso zis lens loj |
130 hli |
|
Zaub |
3.5 nti npo zaub, tuaj yeem thim rov qab 180 degree; |
|
Xim lub log |
7 kho xim ntxiv rau dawb ntxiv rau CMY ntxiv rau CTO. CT:3200-6000K |
|
Tsau Gobo |
8 gobo plus dawb |
|
Rotation pob |
6 gobo plus dawb, hloov tau; |
|
Prism |
4 facet prism, Frost muaj nuj nqi; |
|
Beam Angel |
6-51 degree ; |
|
Dimmer |
0-100 feem pua linear hloov; |
|
Lris |
Linear adjustable |
|
Txiav |
4 cov. Tom qab txiav, tus qauv tuaj yeem tig 180 degree |
|
USB chaw nres nkoj tuaj yeem teeb tsa DMX chaw nyob ua ntej lub hwj chim rau thiab hloov kho lub software. |
|
|
Txoj hauj lwm kaw qhov system |
Magnetism txoj hauj lwm kaw qhov system |
|
ECO hom |
Tom qab kaw lub kaw lus, lub teeb hluav taws xob cia li los tiv thaiv lub teeb. |
|
Pan |
540 degree; 8 ntsis / 16bit; |
|
Tilt |
270 degree; 8 ntsis / 16bit; |
|
Tus nqi IP |
IP20; |
|
Khoom loj |
482X371X870mm; |
|
Flycaes |
680X705X940mm (Tsis suav Log); |
|
N.W |
39,5 KG; |
|
G.W |
75KG (nrog flycase 1 hauv 1). |
Daim ntawv thov
1. Theatre ntau lawm: Lub teeb no yog tsim nyog rau kev ua yeeb yam ntau lawm, vim hais tias nws muab beam tswj kom raug, xim muaj ntau haiv neeg thiab ntau yam teebmeem, uas tuaj yeem tsim teeb pom kev zoo rau theem teeb pom kev zoo.
2. Kev hais kwv txhiaj thiab cov xwm txheej nyob: Nws lub siab ci ntsa iab, txav nrawm thiab muaj ntau yam ua rau nws tsim nyog rau kev hais kwv txhiaj thiab cov xwm txheej nyob uas yuav tsum tau muaj teeb pom kev zoo thiab muaj txiaj ntsig.
3. Zaj duab xis thiab TV: Lub teeb yog nyob ntsiag to, muaj tseeb hauv kev tswj hwm thiab muaj tseeb hauv cov xim rendering, uas yog qhov tsim nyog rau kev ua yeeb yaj kiab thiab TV thiab muab cov teeb pom kev zoo rau kev ua yeeb yam.
Cim npe nrov: 1400w txav taub hau profile, Tuam Tshoj 1400w txav taub hau profile manufacturers, lwm tus neeg, Hoobkas
